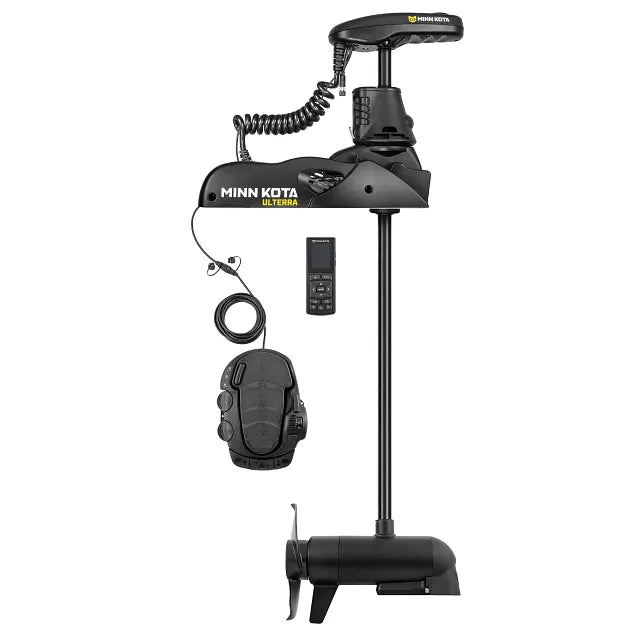

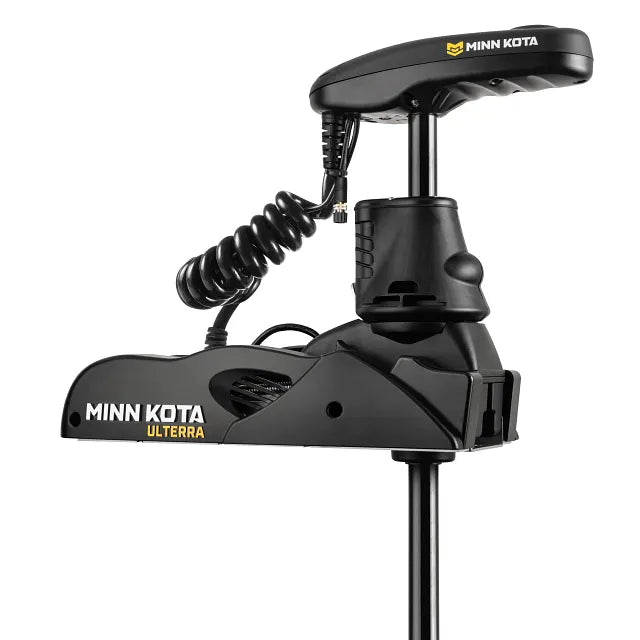

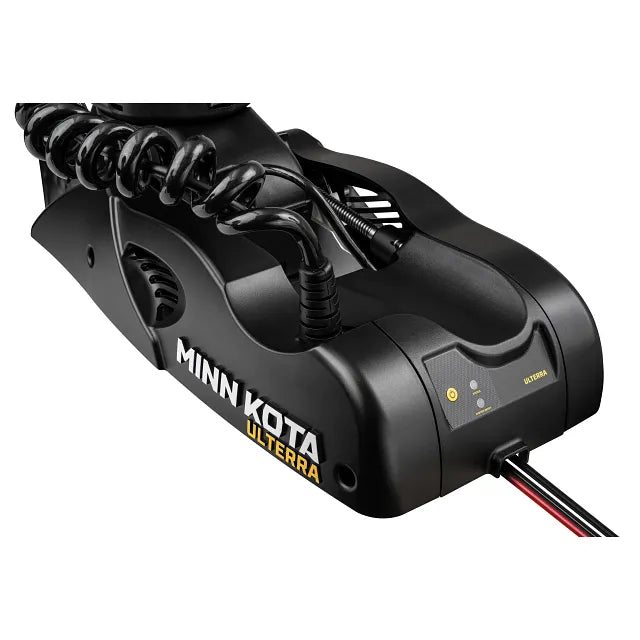

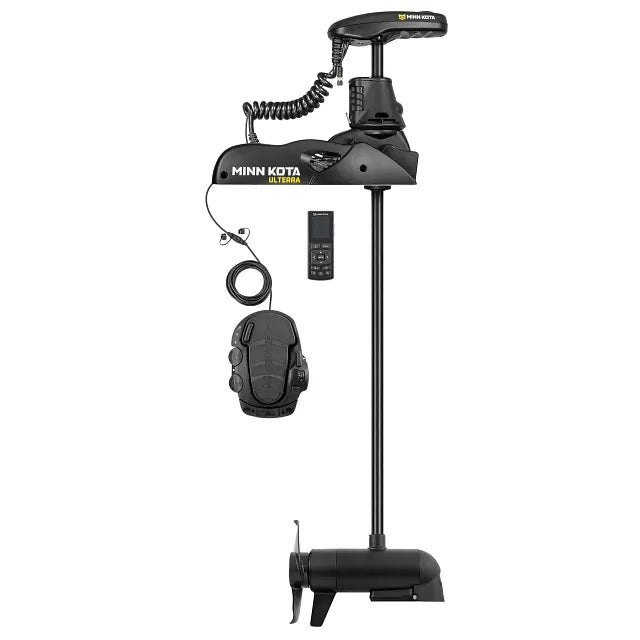

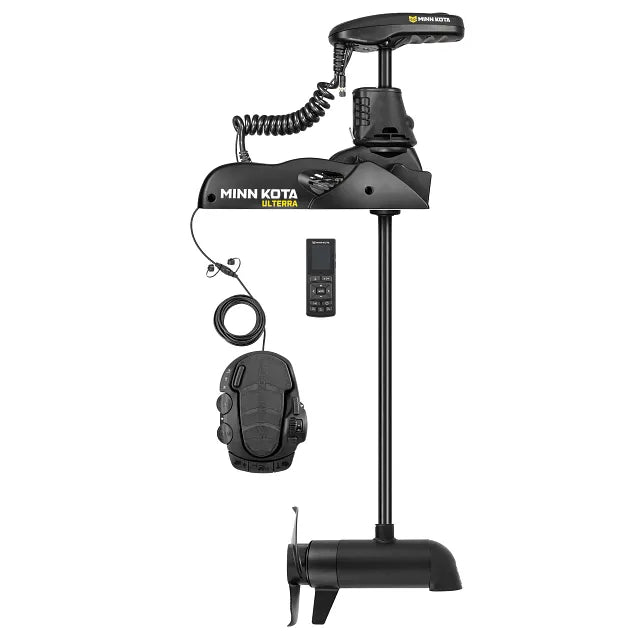

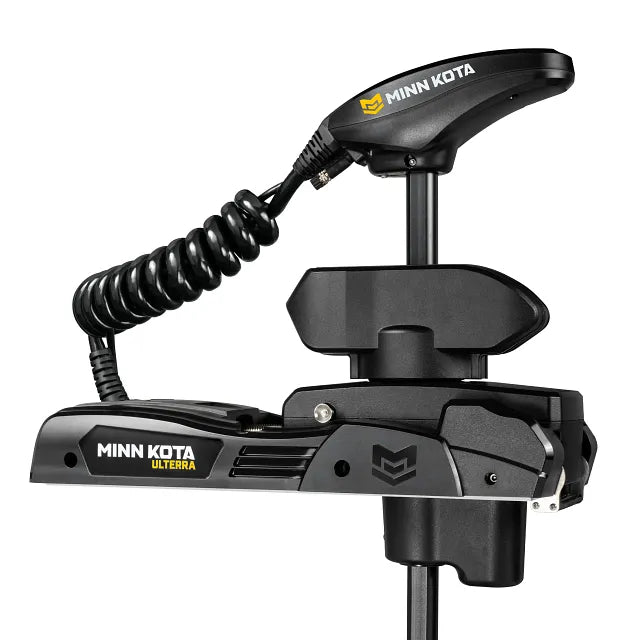

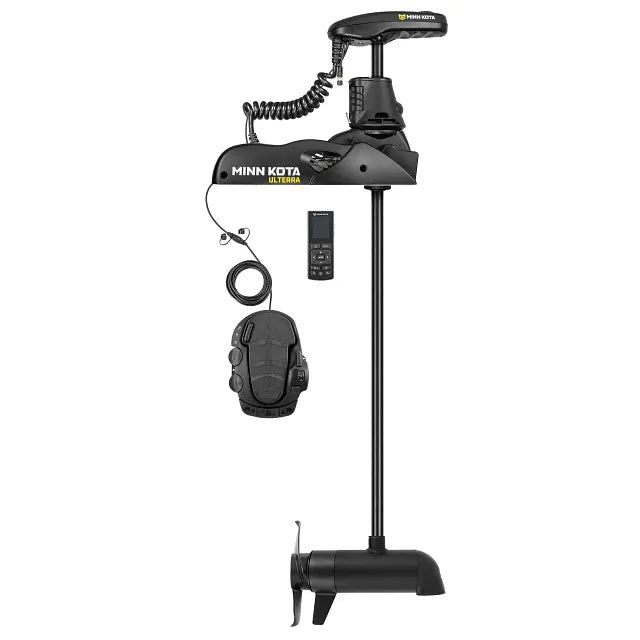

The Minn Kota Ulterra combines automatic stow and deploy, push-button Power Trim and GPS boat positioning in a freshwater bow-mount trolling motor. Choose proven brushed performance or the brushless Ulterra QUEST, then select the shaft length and built-in sonar for your boat.
Automatic adjustments and control

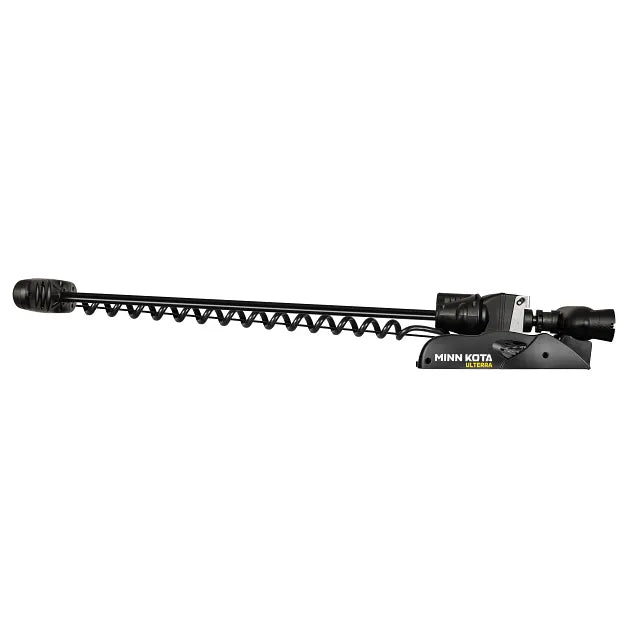

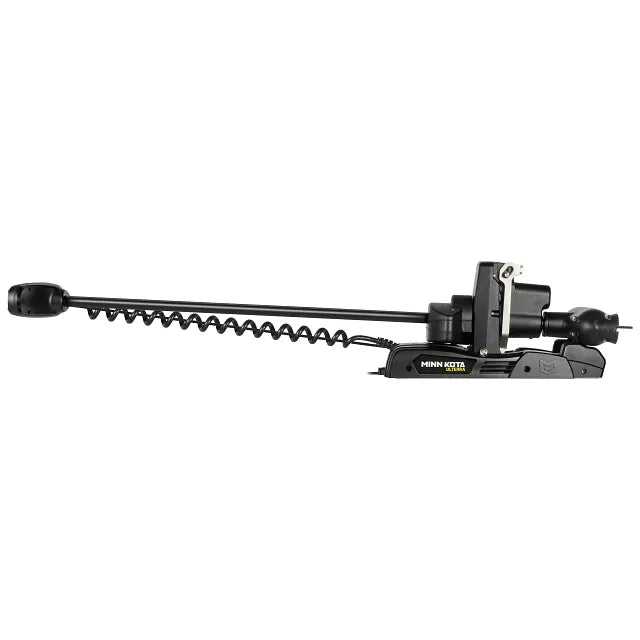

- Auto Stow & Deploy lets you raise or lower the motor at the push of a button.

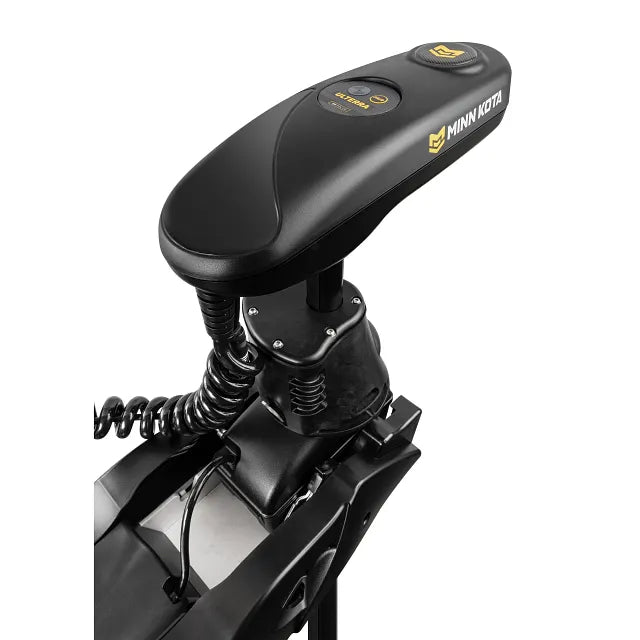

- Power Trim adjusts motor depth from the controls.

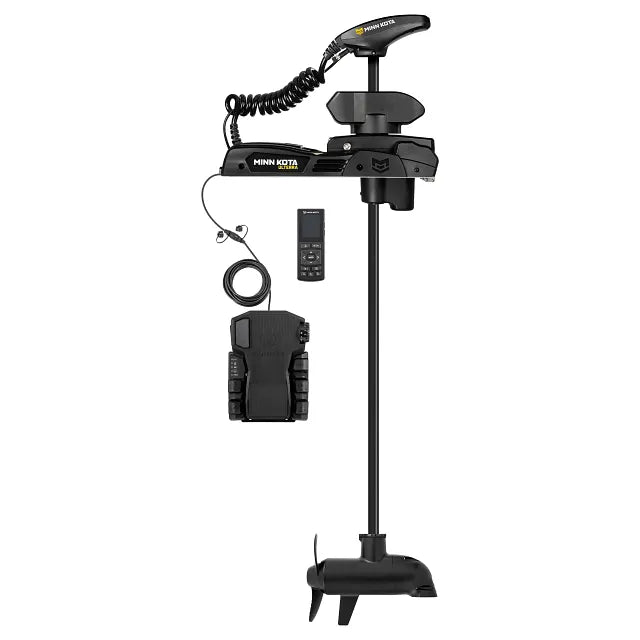

- Wireless remote and heel-toe electric foot-pedal control provide multiple ways to steer and operate the motor. QUEST variants feature an Instant Response foot pedal.

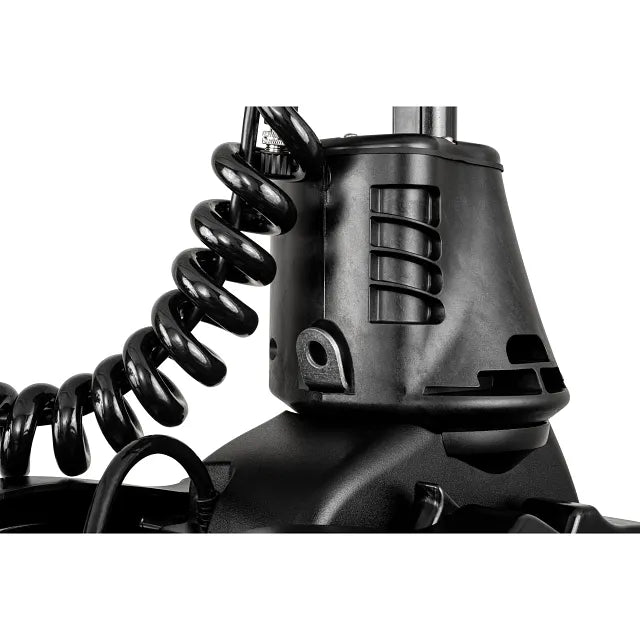

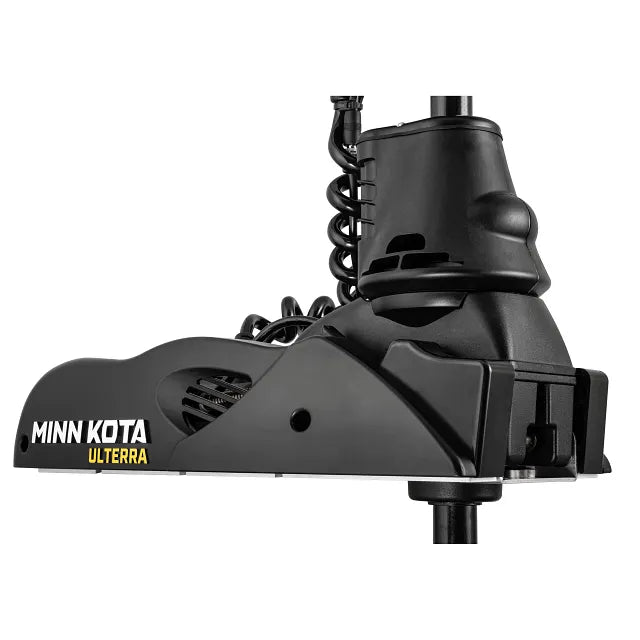

- Power steering supports precise maneuvering, while a clutch system helps protect against accidental bottom strikes.
GPS positioning and connected navigation
- Spot-Lock GPS anchoring helps hold the boat on your fishing spot.
- Drift Mode controls speed and course for a controlled drift.
- Draw & Navigate, Follow Mode and Intelligent Depth Control provide connected navigation functions. Availability depends on compatible fish finders, mapping, sonar and shallow water anchors as applicable.
- Compatible Minn Kota equipment and the Minn Kota Fishing App support wireless system control.
Motor and sonar choices

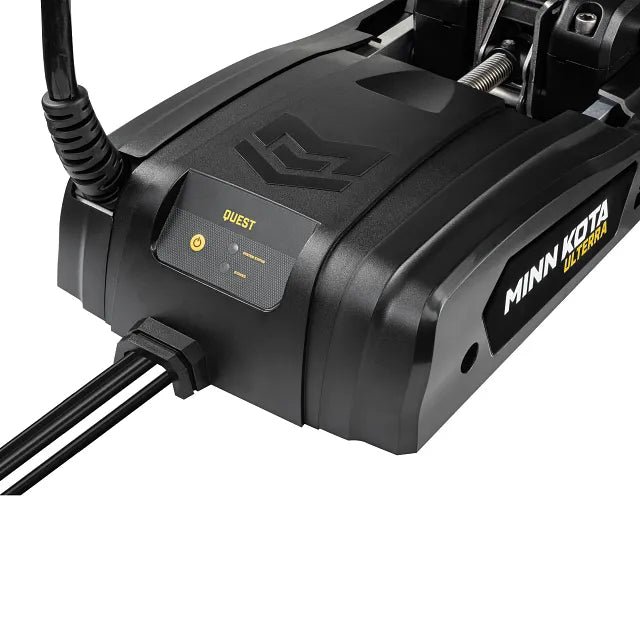

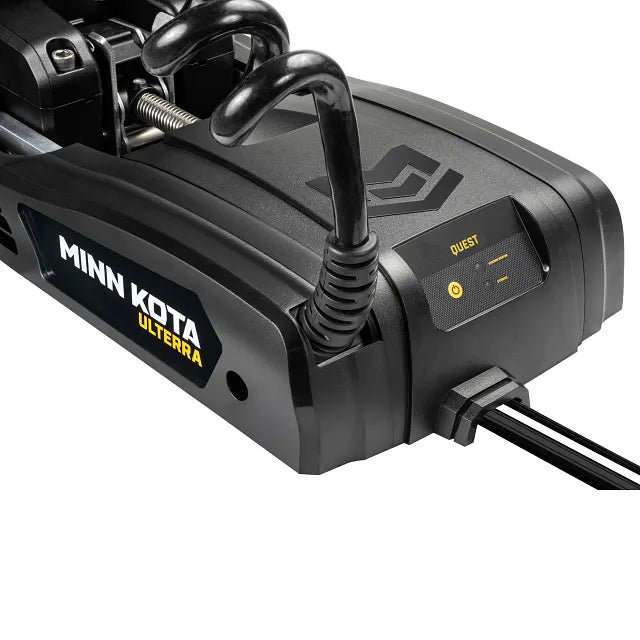

Brushed models offer 80 lb of thrust at 24V or 112 lb at 36V. QUEST brushless models deliver 90 lb at 24V or 115 lb at 36V. Choose Dual Spectrum CHIRP, MEGA Down Imaging or MEGA Down/Side Imaging from the configurations below. Using built-in sonar requires compatible sonar equipment and appropriate connections.
Available configurations
| SKU |
Motor and Power |
Shaft |
Built-In Sonar |
| 1358977 |
Brushed - 80 lb - 24V |
45 in |
Dual Spectrum CHIRP |
| 1358978 |
Brushed - 80 lb - 24V |
60 in |
Dual Spectrum CHIRP |
| 1358972 |
Brushed - 80 lb - 24V |
45 in |
MEGA Down Imaging |
| 1358973 |
Brushed - 80 lb - 24V |
60 in |
MEGA Down Imaging |
| 1358979 |
Brushed - 112 lb - 36V |
60 in |
Dual Spectrum CHIRP |

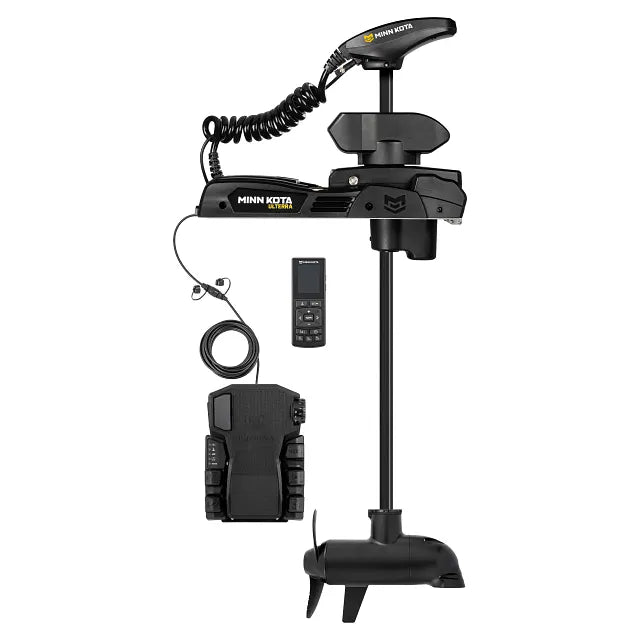

| 1358545 |
QUEST Brushless - 90 lb at 24V or 115 lb at 36V |
45 in |
Dual Spectrum CHIRP |
| 1358546 |
QUEST Brushless - 90 lb at 24V or 115 lb at 36V |
60 in |
Dual Spectrum CHIRP |

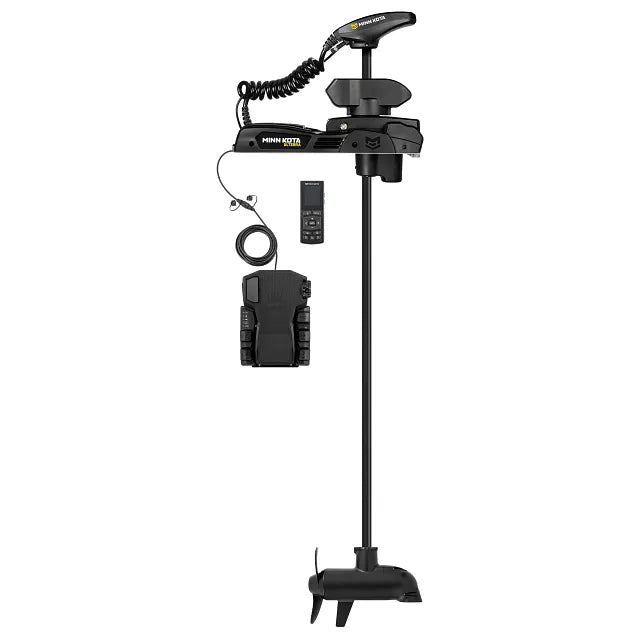

| 1358547 |
QUEST Brushless - 90 lb at 24V or 115 lb at 36V |
72 in |
Dual Spectrum CHIRP |

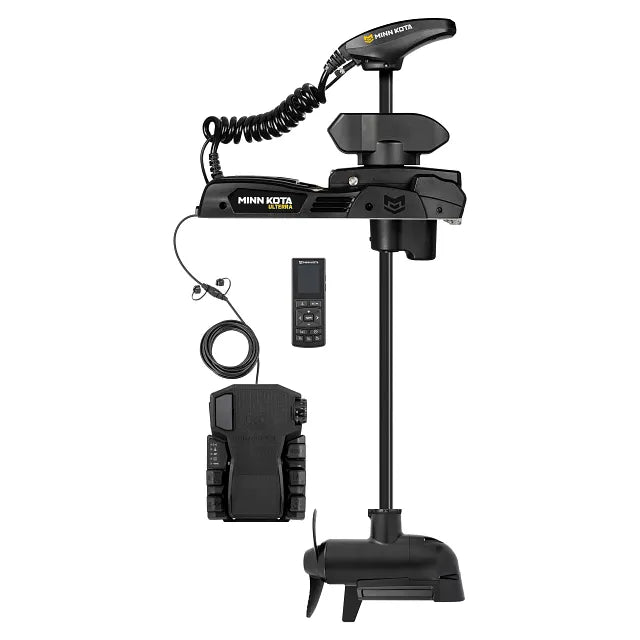

| 1358505 |
QUEST Brushless - 90 lb at 24V or 115 lb at 36V |
45 in |
MEGA Down/Side Imaging |

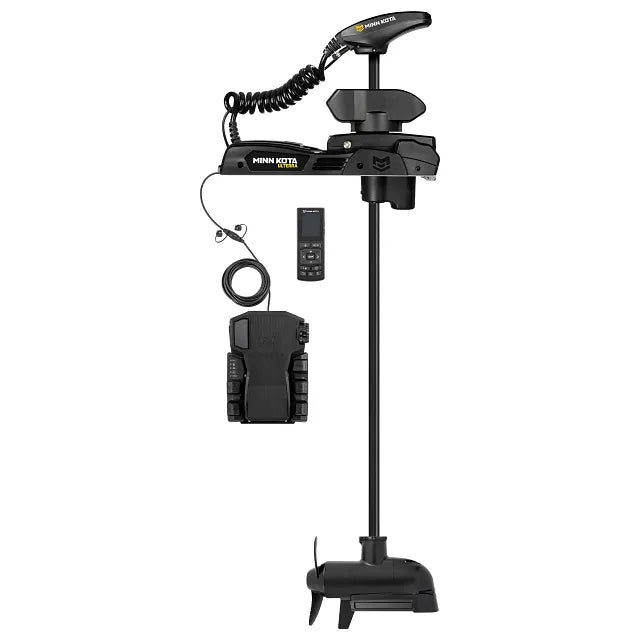

| 1358506 |
QUEST Brushless - 90 lb at 24V or 115 lb at 36V |
60 in |
MEGA Down/Side Imaging |

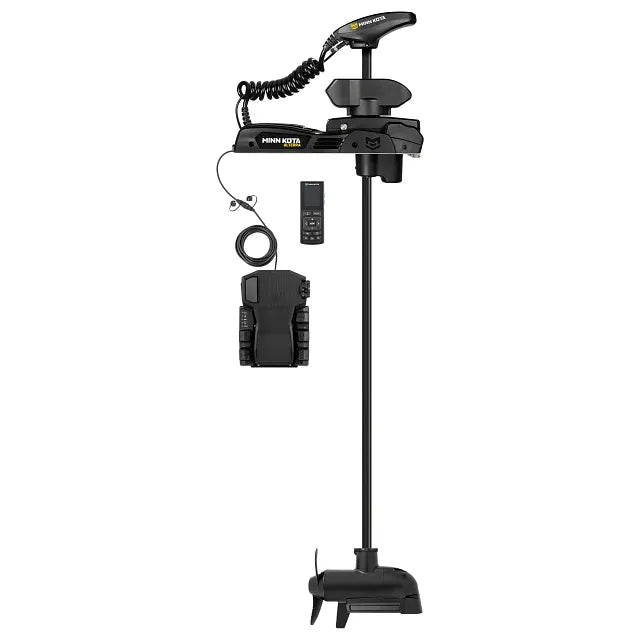

| 1358507 |
QUEST Brushless - 90 lb at 24V or 115 lb at 36V |
72 in |
MEGA Down/Side Imaging |
Composite shaft with a lifetime shaft guarantee. Two-year limited motor warranty, extended to three years with product registration. Supplied equipment varies by model; all configurations shown include wireless remote and foot-pedal control. Select the exact configuration before ordering.
