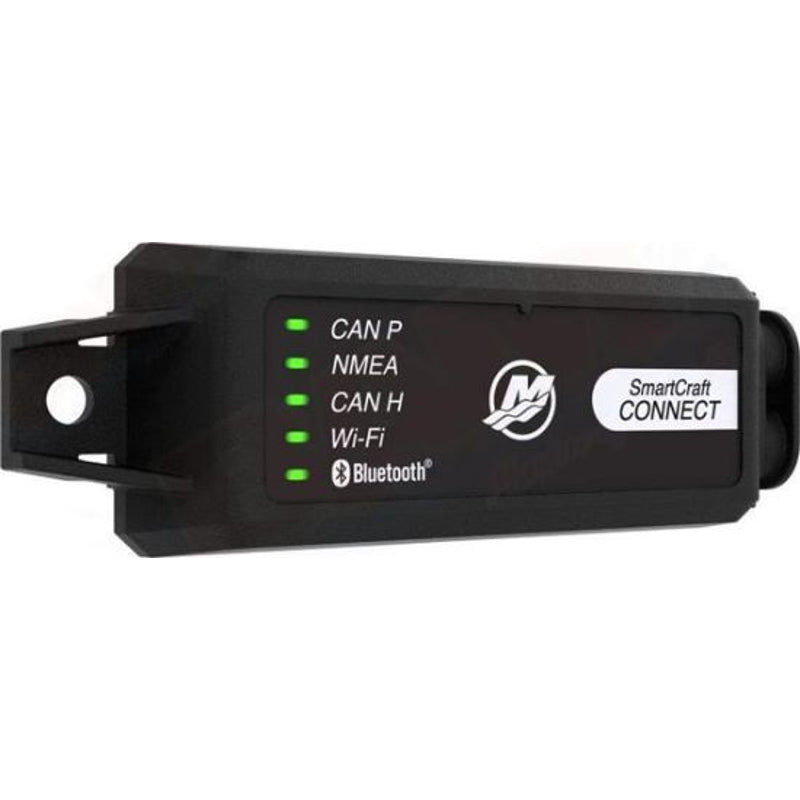

The Mercury SmartCraft Connect Level 3 gateway (part 8M0173694) connects a single compatible Mercury SmartCraft-equipped engine to supported marine multifunction displays, providing integrated VesselView engine information alongside your chartplotter and sonar.
Features
- Designed for single-engine installations, mounted under the helm.
- Integrates SmartCraft information through the vessel's NMEA 2000 network to supported chartplotters.
- Displays key engine information such as RPM, speed, fuel data, engine temperature, trim and maintenance information, where supported.
- Supports engine alerts and diagnostic information on compatible systems.
- Bluetooth and Wi-Fi connectivity enable updates and compatible Mercury Marine app features.
- Designed for compatible Garmin GPSMAP, Raymarine Axiom and select Simrad marine displays. Display features vary by model and software version.
Specifications
- Brand: Mercury Marine
- Product: SmartCraft Connect Level 3 – Single Engine, Under Helm
- Manufacturer part number: 8M0173694
- UPC: 678633133206
- Supported engines: 1
- Mounting location: Under helm (not under engine cowl)
- Interfaces: Mercury SmartCraft and NMEA 2000
- Wireless connectivity: Bluetooth / Wi-Fi
Compatibility: Verify the engine year, horsepower, SmartCraft configuration, compatible display and required installation accessories with your Mercury dealer before purchase. The gateway connects to a SmartCraft junction box and an NMEA 2000 network. Do not install SmartCraft Connect on the same SmartCraft network as an existing MercMonitor or VesselView Link system.
