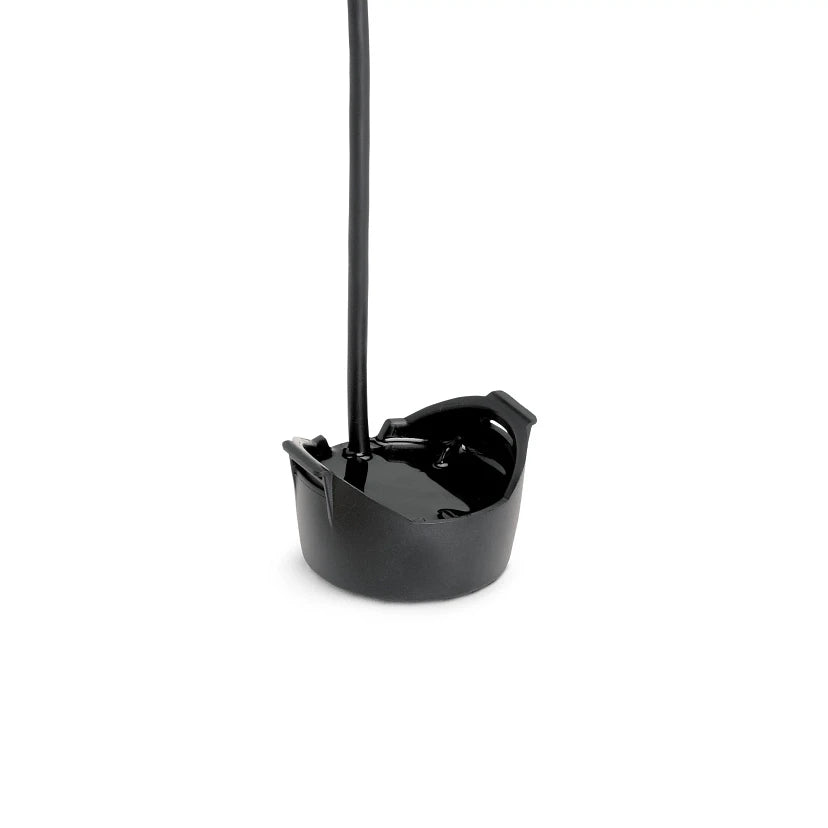

In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. No temperature. For use in single layer fiberglass hull.
Compatible With
All XPLORE, all APEX and all SOLIX to the maximum capabilities of the transducer
2D Sonar Only
Side Imaging™ and Down Imaging™ units can support the XP 14 HW as a sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
Cable Length
15 feet
Dual Spectrum CHIRP Frequencies
Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
Dual Spectrum CHIRP Max Depth
1200ft (365m)
Warranty
1-Year Limited Warranty
