This Humminbird NMEA 2000 GPS Heading Sensor delivers accurate positioning and provides true heading, even when the boat is stationary or drifting. This improves waypoint accuracy, chart orientation, and overall situational awareness on the water. This heading sensor can be connected to a conventional NMEA 2000 network or connected directly to a compatible NMEA 2000 capable fish finder with the Direct NMEA 2000 included cable. This NMEA 2000 accessory is compatible with the APEX Series, XPLORE Series, SOLIX Series, and HELIX G4N fish finders.
Compatible With: All APEX, All XPLORE, All SOLIX, and HELIX G4N models.
Waypoint Integration with MEGA 360® Imaging: When paired with MEGA 360® Imaging, the heading sensor data enables precise waypoint marking and display. Waypoints appear accurately on the MEGA 360® sonar view, allowing anglers to navigate back to specific targets or structures with confidence.
NMEA 2000 Networking: This Humminbird NMEA 2000 device can be connected to a conventional NMEA 2000 network or connected directly to a compatible NMEA 2000 capable fish finder with the Direct NMEA 2000 cable (included).
Real-Time Boat Orientation: Provides accurate, real-time heading data, allowing the chart view to display a dynamic heading line and rotate the boat icon to reflect actual bow direction—even when stationary or drifting. This improves situational awareness, especially in Heads Up mode.
Precise Waypoint Targeting: When you mark a waypoint (e.g., where you saw fish or structure), the heading sensor allows the chart to correctly orient in the direction of that point relative to the boat, enabling you to return to it more accurately.
Advanced Chart Integration with Minn Kota® Autopilot™ and Drift Modes: A heading sensor enhances Minn Kota® Autopilot™ and Drift Modes by providing accurate boat orientation, enabling more precise and responsive navigation adjustments on Humminbird® Chart Views while fishing.
More Effective Trolling: When trolling at low speeds, the heading sensor gives accurate directional data, allowing you to maintain consistent trolling lines and cover water efficiently.
High Accuracy GPS: Dual-band GPS receiver with WAAS/EGNOS capability.
Improved Navigation: View your track & speed, mark waypoints, navigate and more.
Flexible Mounting: Mount on any flat surface or 1” x 14 thread pole.
Fish Faster: Simple plug and play installation.

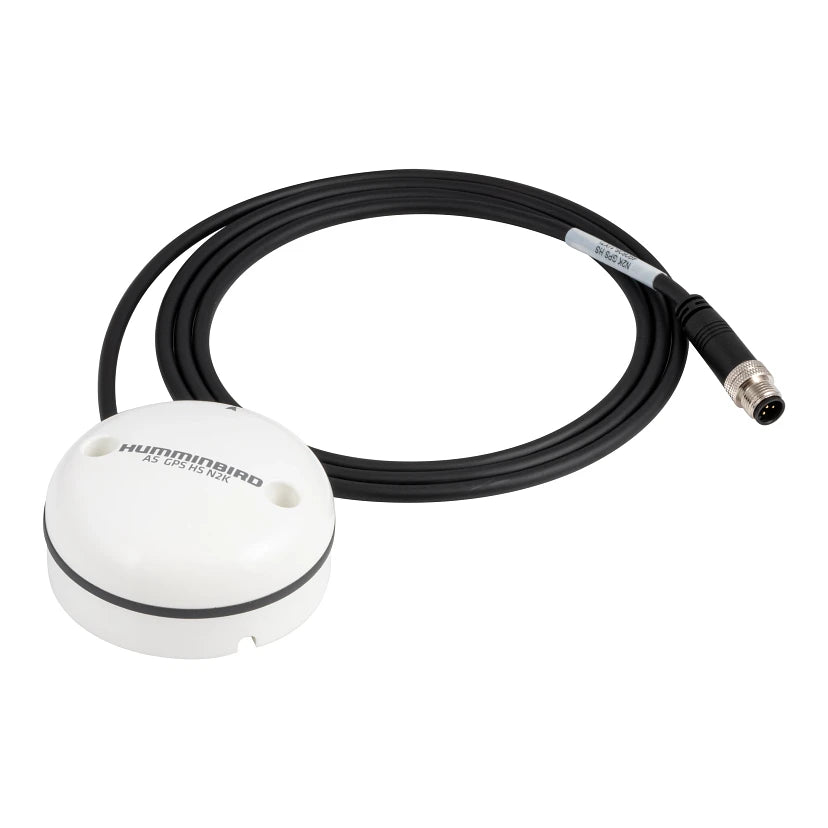

Dimensions: 3.25" Receiver Diameter.

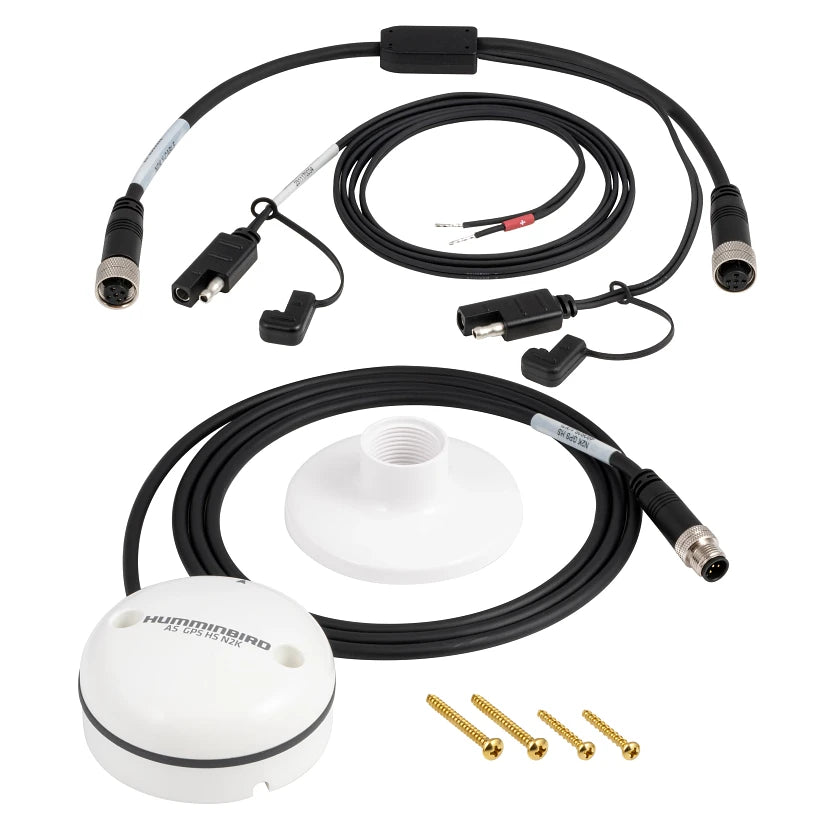

True Direction: Advanced GPS compass and heading sensor reads true direction while sitting still or moving. Includes 1" x 14 threaded stem adapter.

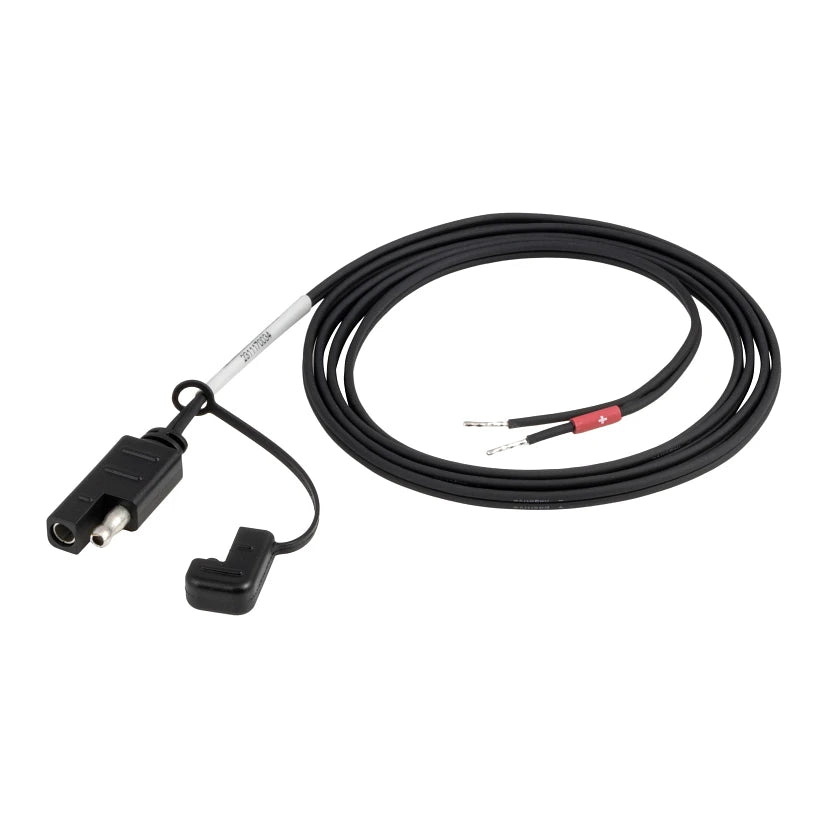

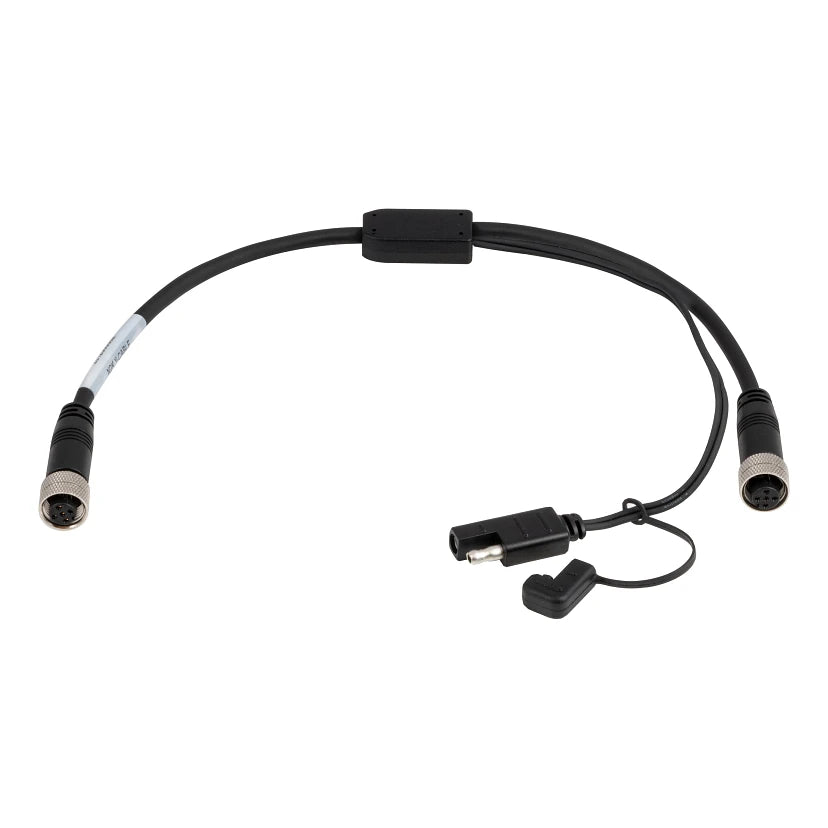

Cable Length: This item features three distinct cables for versatile connectivity. The cable connected to the receiver is 70" long, the power cable is 54", and the Y-cable has a total length of approximately 15" (with 9" leads for both the power and NMEA 2000 sides).
Warranty: 1-Year Limited Warranty.
