Garmin LiveScope System Thru-Hull Mount

The Panoptix LiveScope System with Thru-Hull Transducer gives you real-time live-scanning sonar: view fish, structure and your lure around or ahead of your boat — even when it’s stationary. :contentReference[oaicite:1]{index=1}

Specifications

• Transmit power: 500 W. :contentReference[oaicite:3]{index=3}
• Maximum range (Forward mode): Up to about 200 ft (~61 m). :contentReference[oaicite:4]{index=4}
• Beamwidth: 20° × 135°. :contentReference[oaicite:5]{index=5}
• Transducer cable length: 20 ft (~6.1 m). :contentReference[oaicite:6]{index=6}
• Water rating: IPX7 for the sonar black box. :contentReference[oaicite:7]{index=7}
• Power input: 10-32 V DC. :contentReference[oaicite:8]{index=8}
• Compatible systems: Works with Garmin Marine Network chartplotters including GPSMAP 8400/8600, 7400/7600, 1002/1202 and ECHOMAP Plus 70cv/70sv and 90sv series. :contentReference[oaicite:9]{index=9}

What’s Included

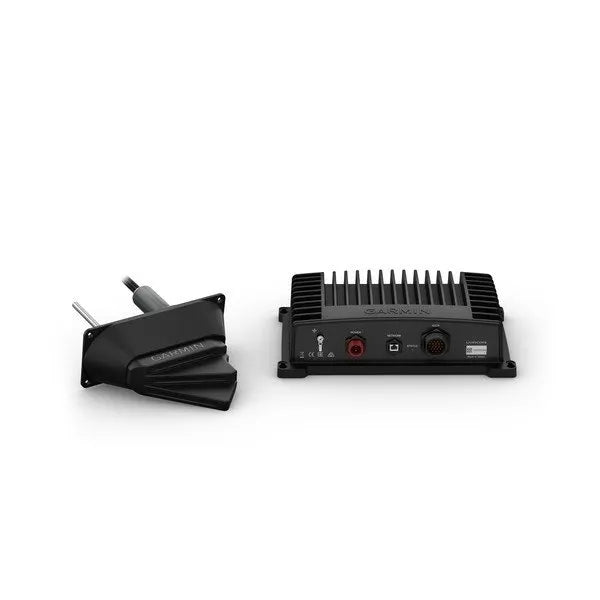

• GLS 10 sonar black box
• LVS32-TH thru-hull transducer
• Thru-hull mount hardware
• Power cable
• Garmin Marine Network cable (small connector) & adapter
• Documentation & mounting hardware :contentReference[oaicite:10]{index=10}
