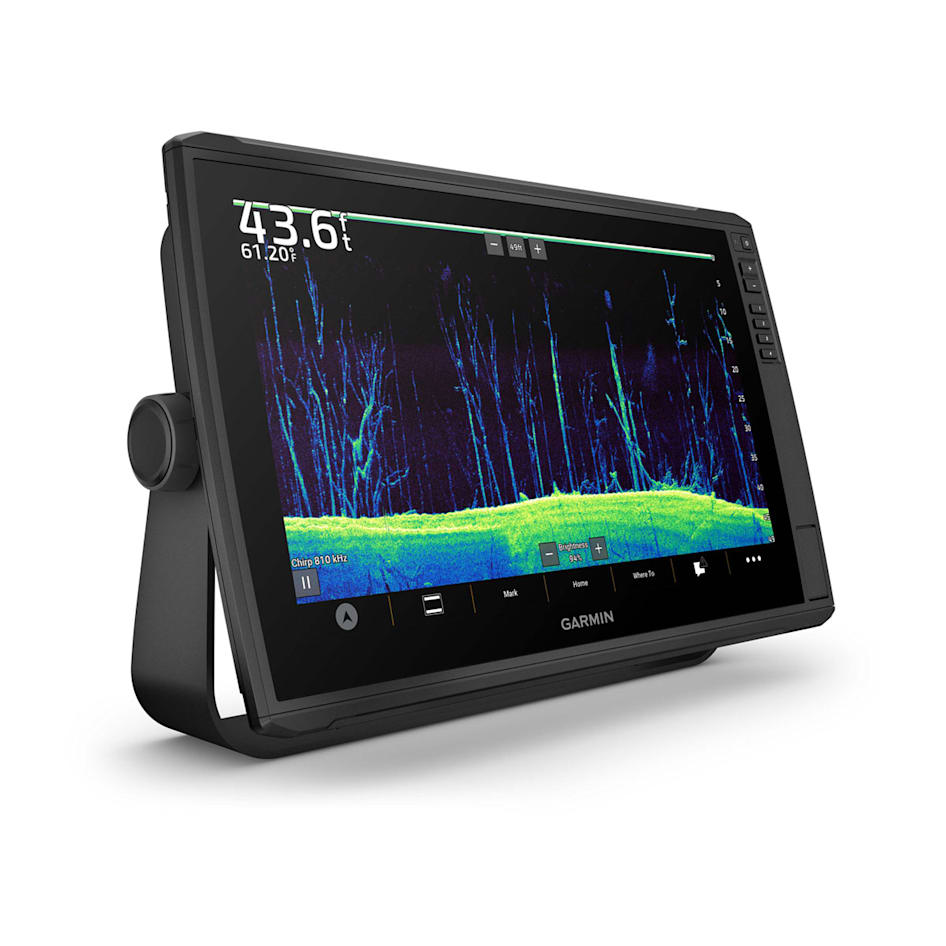

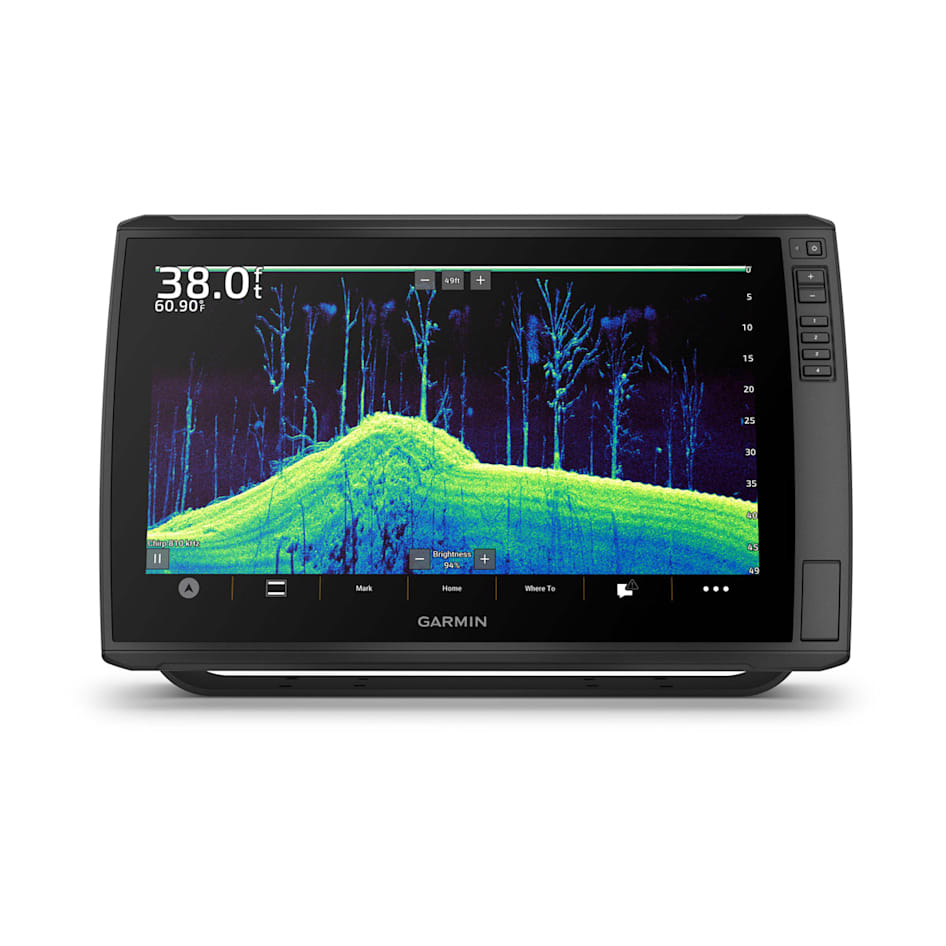

Garmin ECHOMAP Ultra 2 16" Chartplotters 166sv without Transducer

The ECHOMAP™ Ultra 2 16″ Chartplotter is designed for serious anglers and boaters who demand big-screen clarity, full featured sonar and mapping, and networking capabilities that integrate with modern marine systems.

Key Features

• 16-inch Full HD display (1920 × 1080) with touchscreen + keyed assist for glove-friendly operation. :contentReference[oaicite:1]{index=1}
• Preloaded with Garmin Navionics+™ charts (in select regions) for inland & coastal lake/sea coverage. :contentReference[oaicite:2]{index=2}

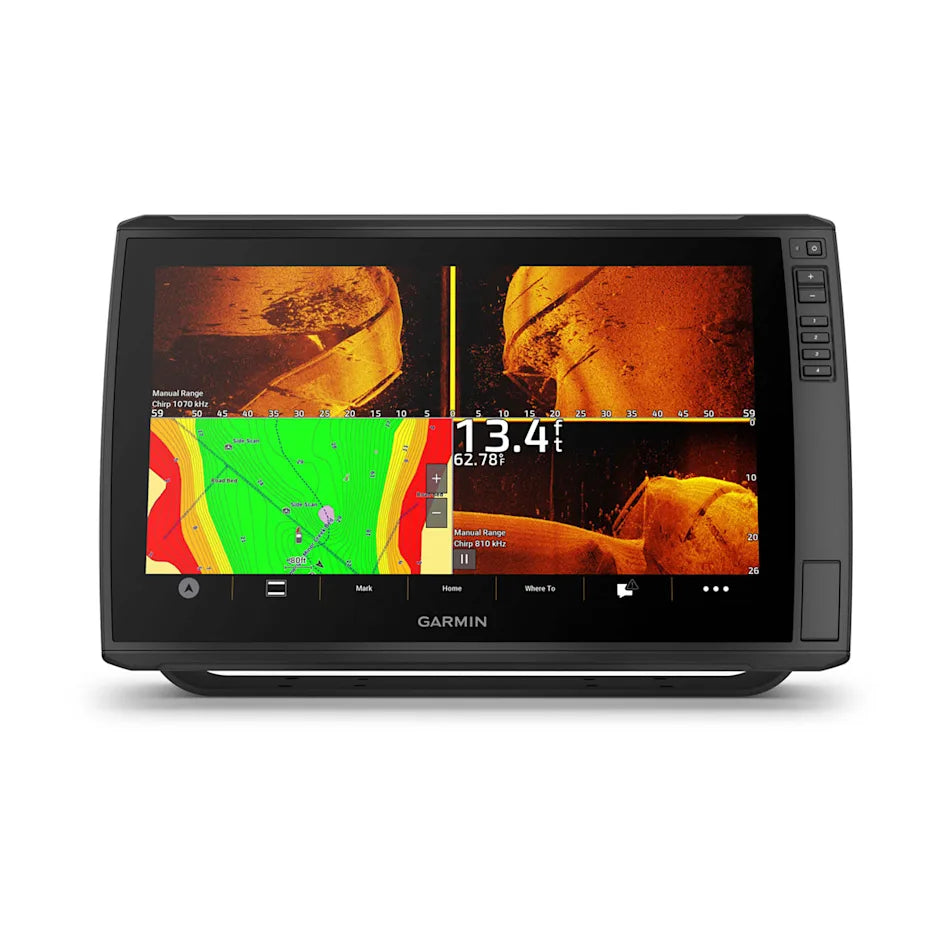

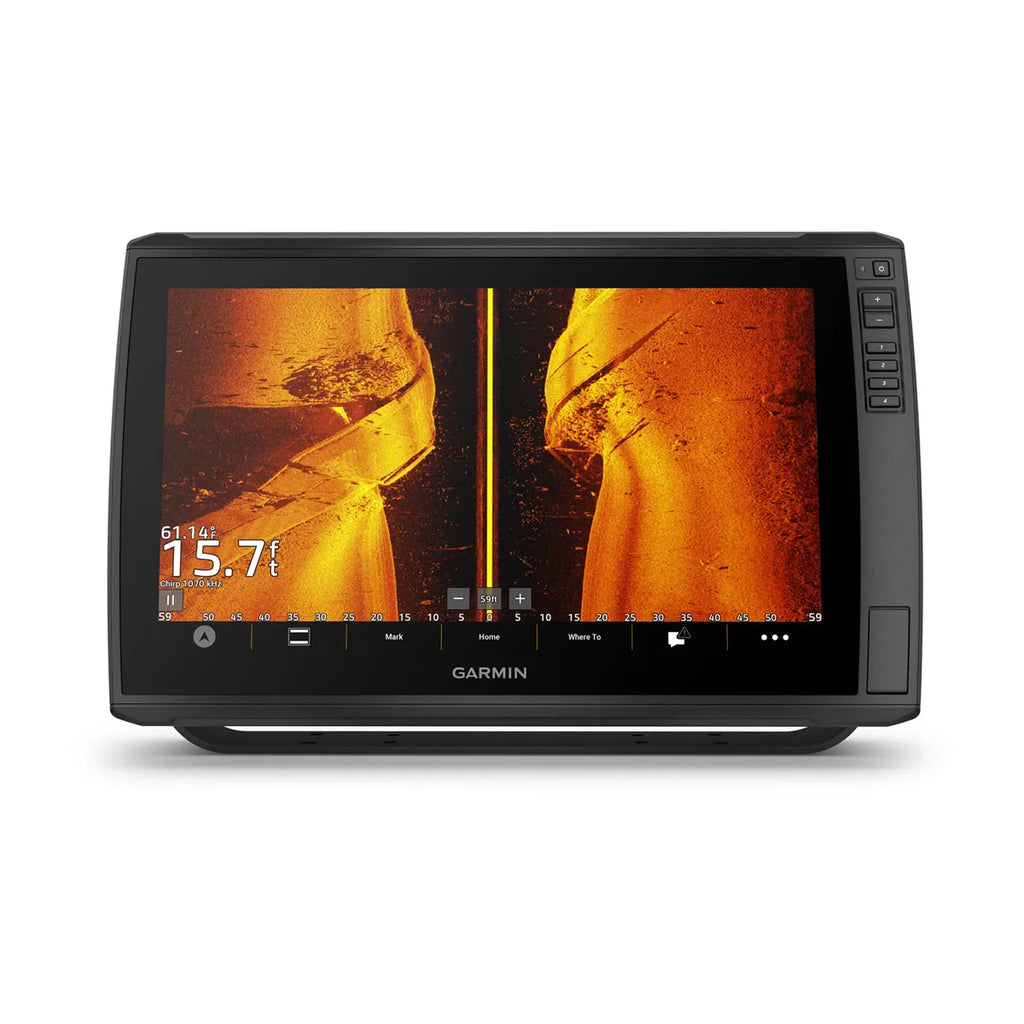

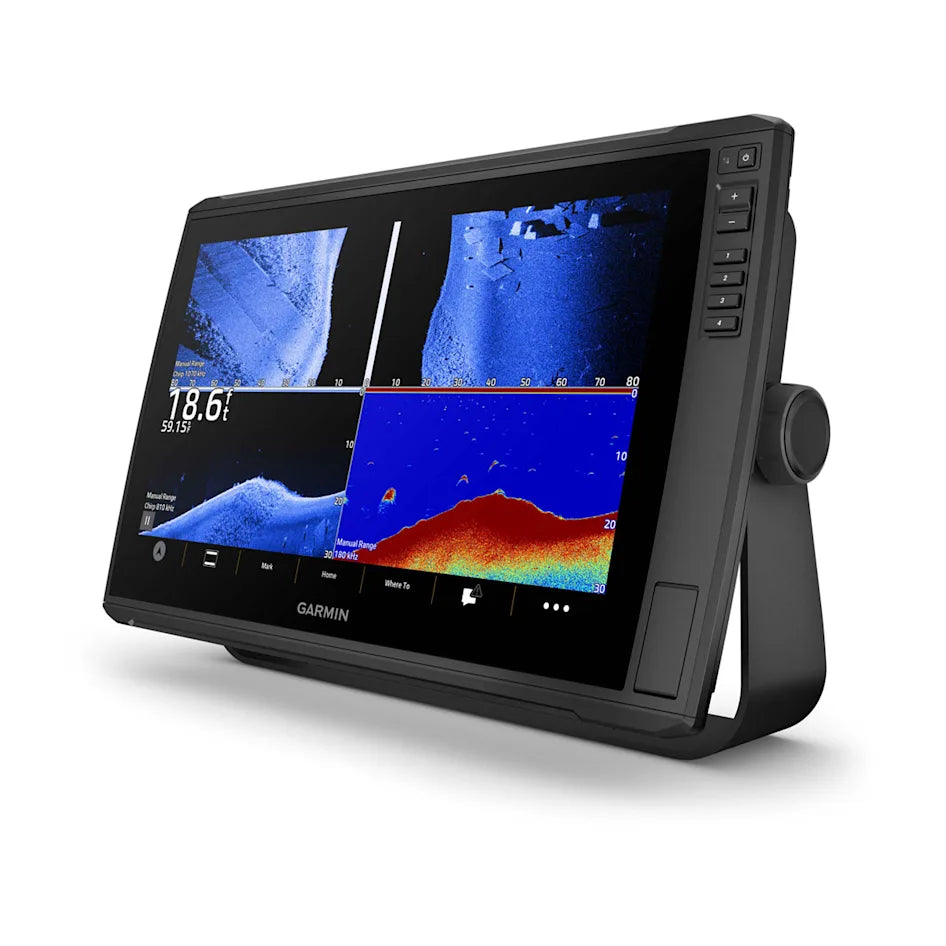

• Supports the full lineup of LiveScope™ live-scanning sonar, Ultra High-Definition ClearVü & SideVü scanning sonars, and CHIRP traditional sonar (transducers sold separately). :contentReference[oaicite:3]{index=3}
• Multi-band GPS for improved positioning accuracy, plus HDMI output for showing the display on external screens. :contentReference[oaicite:4]{index=4}
• Wireless networking functions: share sonar, waypoints and routes with another compatible chartplotter onboard. :contentReference[oaicite:5]{index=5}
• NMEA 2000® compatibility, Bluetooth® voice control support and vivid sonar colour palettes for better target separation. :contentReference[oaicite:6]{index=6}

Specifications

• Dimensions: approx 16.9″ × 10.5″ × 3.14″ (43.0 × 26.6 × 8.0 cm) :contentReference[oaicite:7]{index=7}
• Weight: approx 9.5 lb (4.3 kg) :contentReference[oaicite:8]{index=8}
• Water rating: IPX7 :contentReference[oaicite:9]{index=9}
• Display type: IPS, Full HD (1920 × 1080) :contentReference[oaicite:10]{index=10}

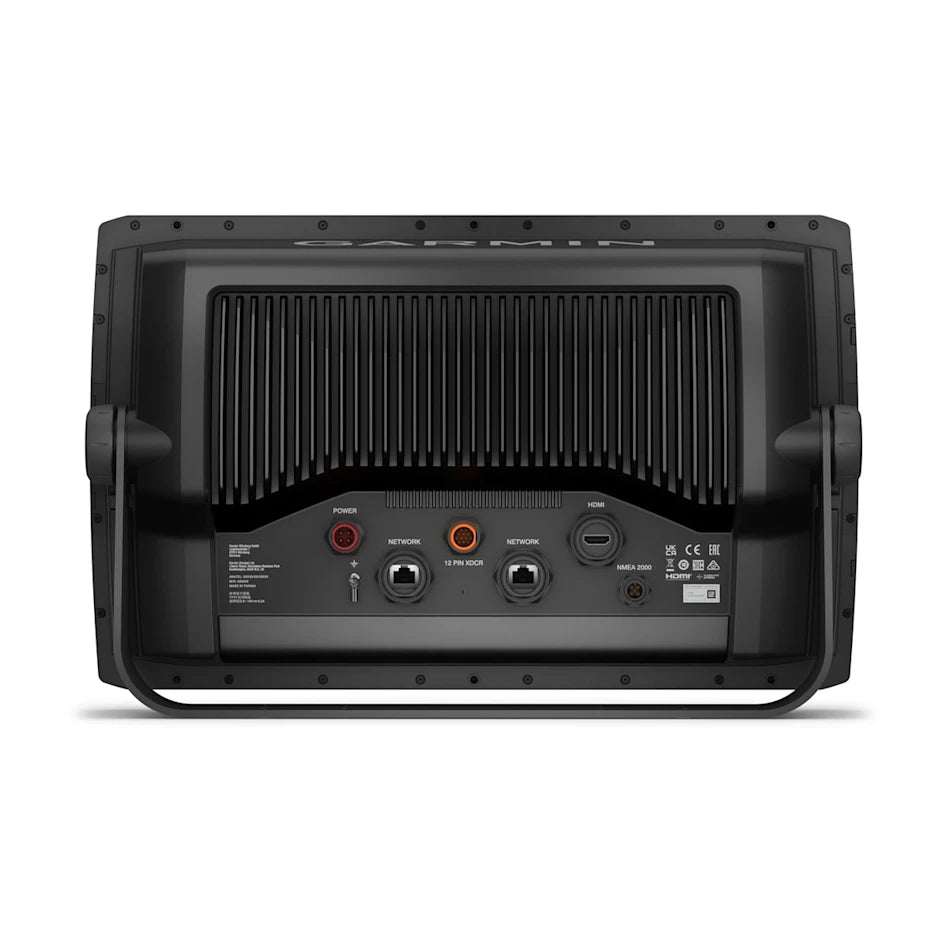

• Transducer port: 12-pin (for scanning sonar) :contentReference[oaicite:11]{index=11}

What’s Included

• Chartplotter unit (16″ full HD screen)
• Power cable
• Bail mount with knobs!
• Protective sun cover + hardware + documentation :contentReference[oaicite:12]{index=12}
