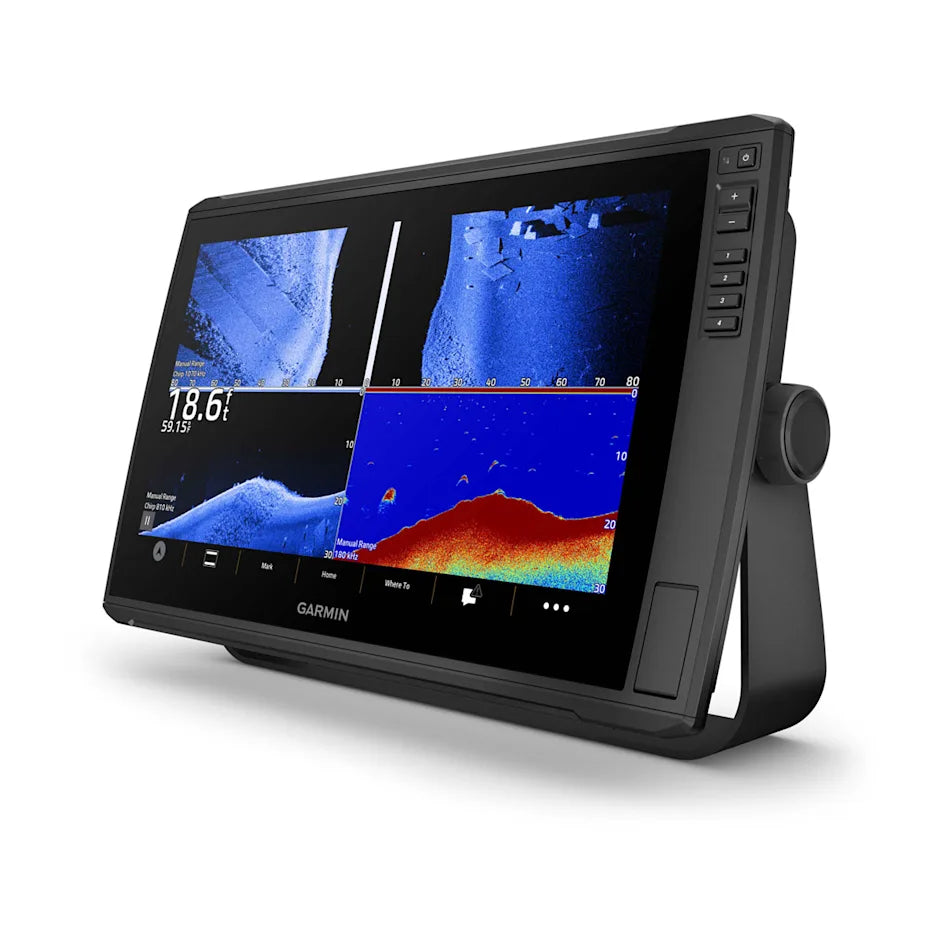

The 16″ chartplotter from the ECHOMAP Ultra 2 series gives anglers an ultra-clear view of structure, cover and fish. Featuring a full-HD, glove-friendly 16-inch display, advanced sonar capabilities and multi-band GPS, it’s built for serious performance. :contentReference[oaicite:1]{index=1}
Key Features
- Full HD 16″ (≈15.6″ diagonal) IPS touchscreen display with keyed-assist for easy operation in all conditions. :contentReference[oaicite:2]{index=2}
- Support for the full line of LiveScope™ live-scanning sonar systems (transducer sold separately). :contentReference[oaicite:3]{index=3}

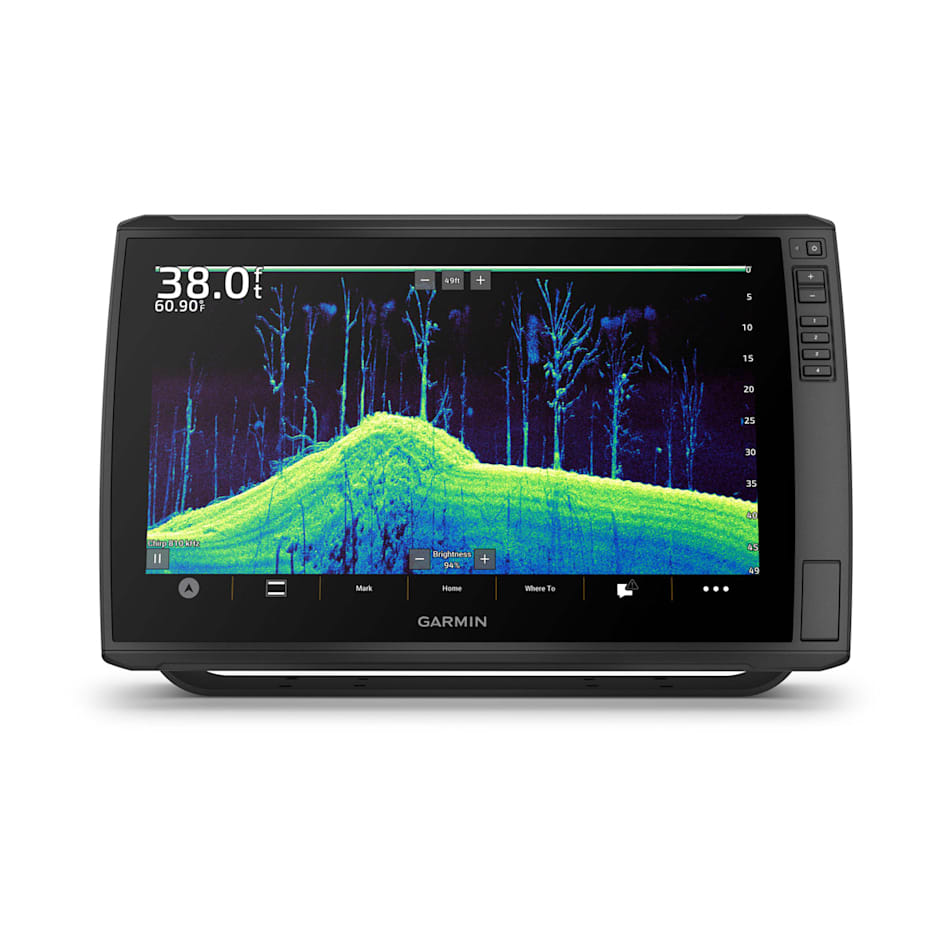

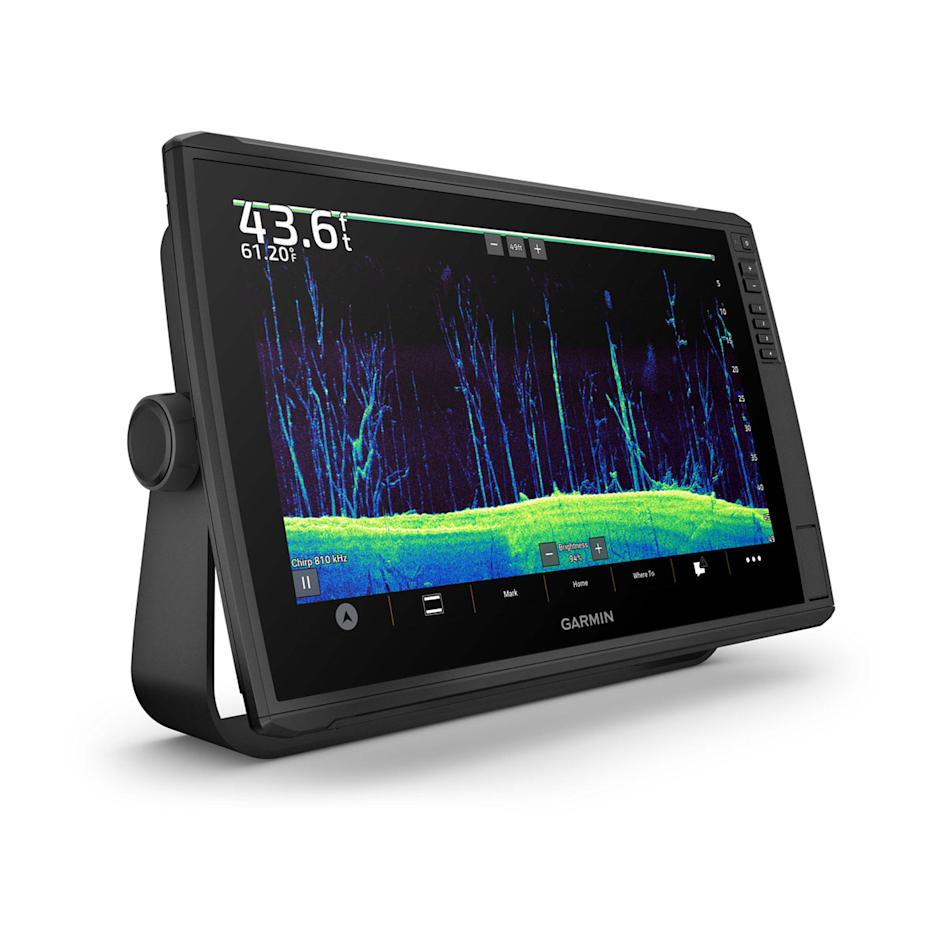

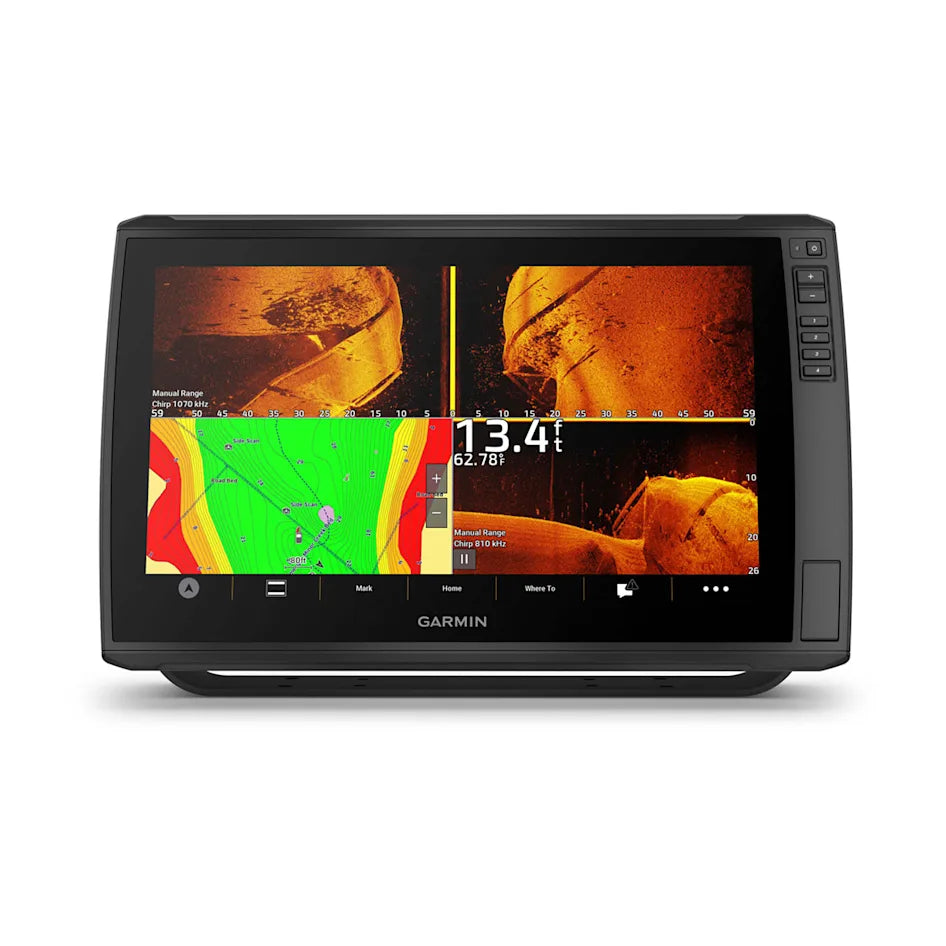

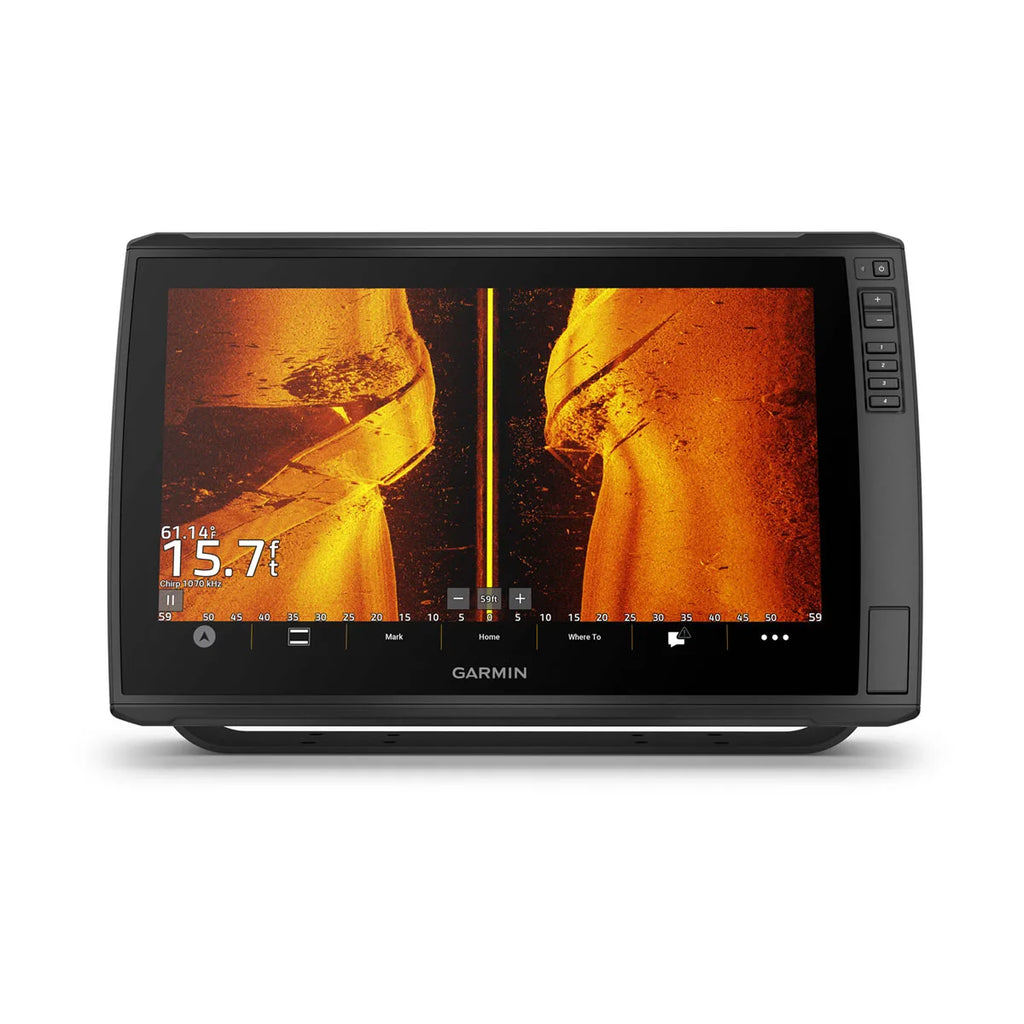

- Built-in CHIRP traditional sonar plus Ultra-High-Definition ClearVü™ and SideVü™ scanning sonar for photo-like underwater images. :contentReference[oaicite:4]{index=4}
- Pre-loaded Garmin Navionics+™ inland & coastal mapping (on select models). :contentReference[oaicite:5]{index=5}

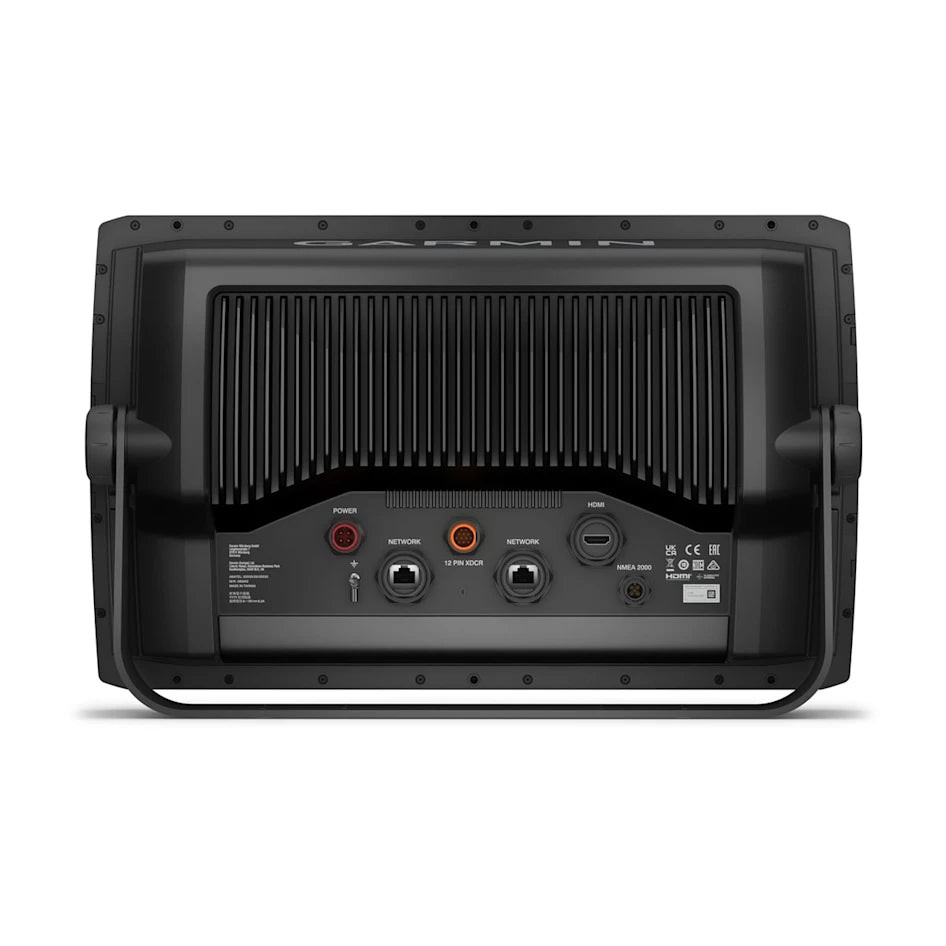

- HDMI output to share chartplotter display on an external screen. :contentReference[oaicite:6]{index=6}
- Wireless networking: share sonar, waypoints and routes with another compatible ECHOMAP Ultra 2 or UHD2 unit. :contentReference[oaicite:7]{index=7}
- Multi-band GPS for improved positioning accuracy in challenging environments. :contentReference[oaicite:8]{index=8}
Specifications
- Dimensions: 16.9″ × 10.5″ × 3.14″ (43.0 × 26.6 × 8.0 cm) :contentReference[oaicite:9]{index=9}
- Weight: 9.5 lb (4.31 kg) :contentReference[oaicite:10]{index=10}
- Water Rating: IPX7 :contentReference[oaicite:11]{index=11}
- Display Resolution: 1920 × 1080 pixels (Full HD) :contentReference[oaicite:12]{index=12}

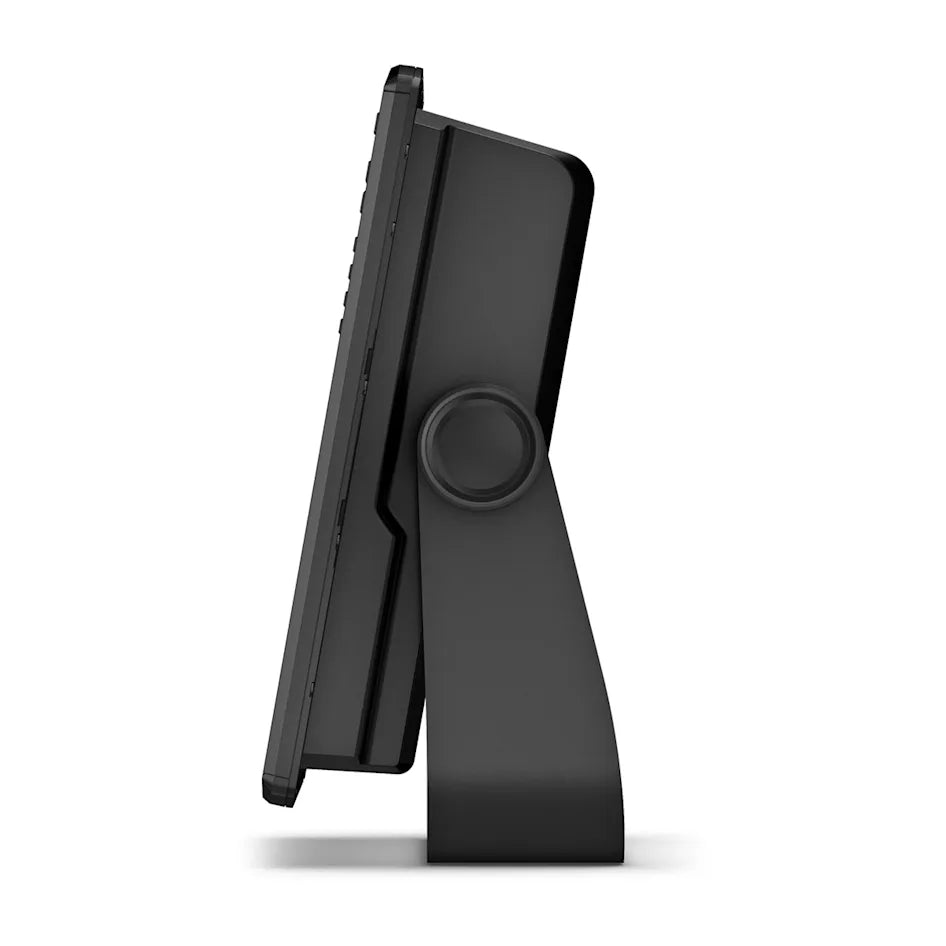

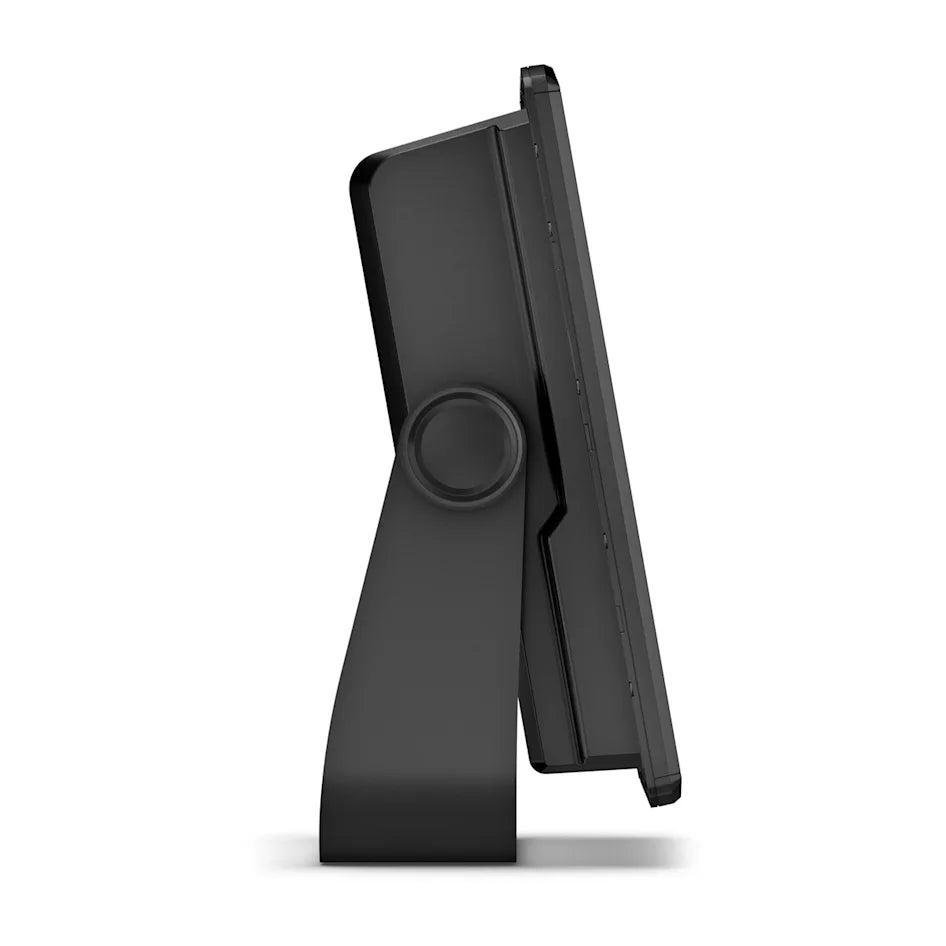

- Mounting Options: Bail mount with knobs + flush mount support :contentReference[oaicite:13]{index=13}
- Power Input: 9-18 Vdc; typical draw ~3.9A at 12V, max ~6.6A at 12V. :contentReference[oaicite:14]{index=14}
What’s Included
- Chartplotter unit – ECHOMAP Ultra 2 16″ (166sv model) :contentReference[oaicite:15]{index=15}
- Power cable, bail mount with knobs, protective sun‐cover, trim caps, hardware & documentation :contentReference[oaicite:16]{index=16}
